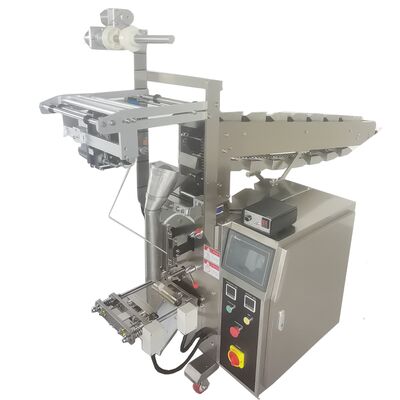

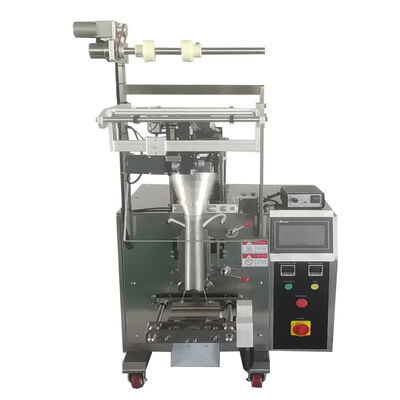

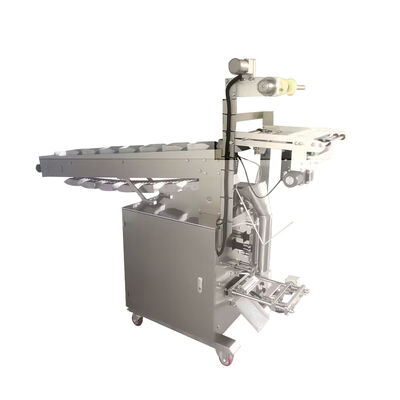

Individual Date Ball Packaging Machine

Individual Date Ball Packaging Machine

Specially designed for soft spherical foods such as date paste balls and energy balls, this machine achieves precise high-speed individual packaging. Utilizing flexible pushing and photoelectric positioning systems, it gently transports deformable date balls into pre-made packaging film without damage, completing nitrogen flushing and multi-edge sealing to effectively extend shelf life.

Compatible with various bag types including back-seal, three-side seal, and stand-up pouches, with a packaging speed of 60-120 packs per minute. The touchscreen allows real-time adjustment of temperature, gas flushing volume, and cutting position, and is equipped with automatic shutdown for material shortage and counting functions. The entire machine complies with food-grade hygiene standards, and its quick film-change design supports specification switching within 30 minutes.

Suitable for healthy snack, meal replacement food, and traditional pastry manufacturers, it enhances product premium appeal while reducing labor dependency. This automated solution is ideal for creating exquisitely packaged individual date ball products.

Specifications

Model: CP01

Bag shape: back seal / trilateral seal

Horizontal seal pattern: straight pattern / reticulated pattern

Longitudinal seal pattern: straight pattern / reticulated pattern

Incision form: tooth-shaped incision / flat-mouth incision: Roll width: Max.480mm

Film thickness: 5-13C (recommended 6-8C)

Bag making length: 40-300mm (touch screen adjustment)

Bag making width: 50-230mm (replace bag making device)

Drive mode: pneumatic

Edge width: 8-10mm (fine adjustment)

Power specifications: 220V, 50 / 60HZ

Bag-making method: Elephant trunk

Film pulling method: stepping motor controls dual wheel film pulling

Speed: 1-70 bags / min

Packing capacity: Max.500g

Power: 1.1kw

Outer packing: wooden box

Equipment weight: 280KG

Equipment size: length 800 * width 700 * height 1600 mm

Measurement method: manual measurement

Standard equipment: coding function

Bag material: OPP / CPP / PE / NIL0 composite / PE + PET / AL, etc.

Machine working Video

Date package machine
