| ব্র্যান্ড নাম: | PAPA |
| MOQ: | 1 সেট |
| দাম: | আলোচনাযোগ্য |
| অর্থ প্রদানের শর্তাবলী: | T/T বা L/C দৃষ্টিতে |
| সরবরাহের ক্ষমতা: | 80সেট/মাস |

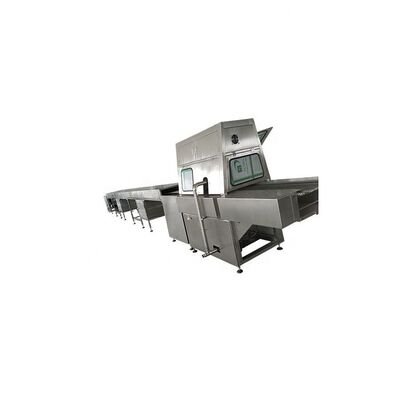

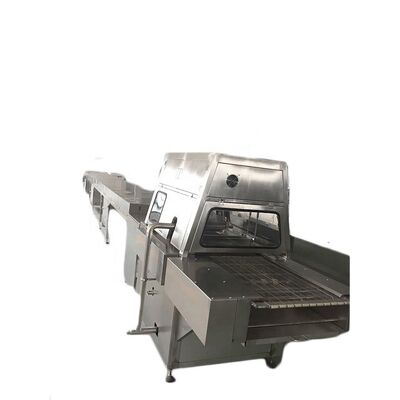

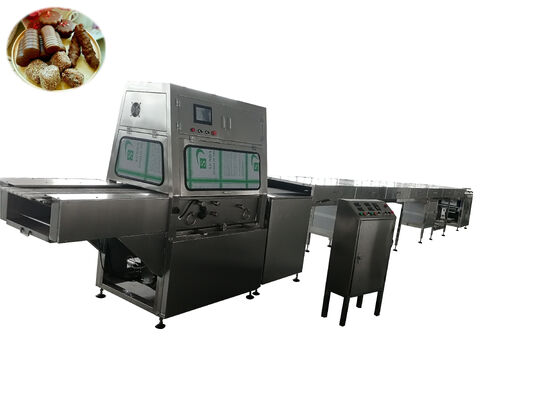

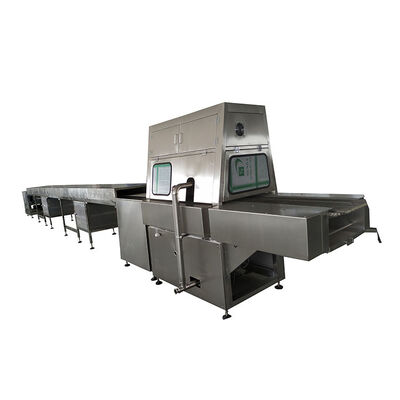

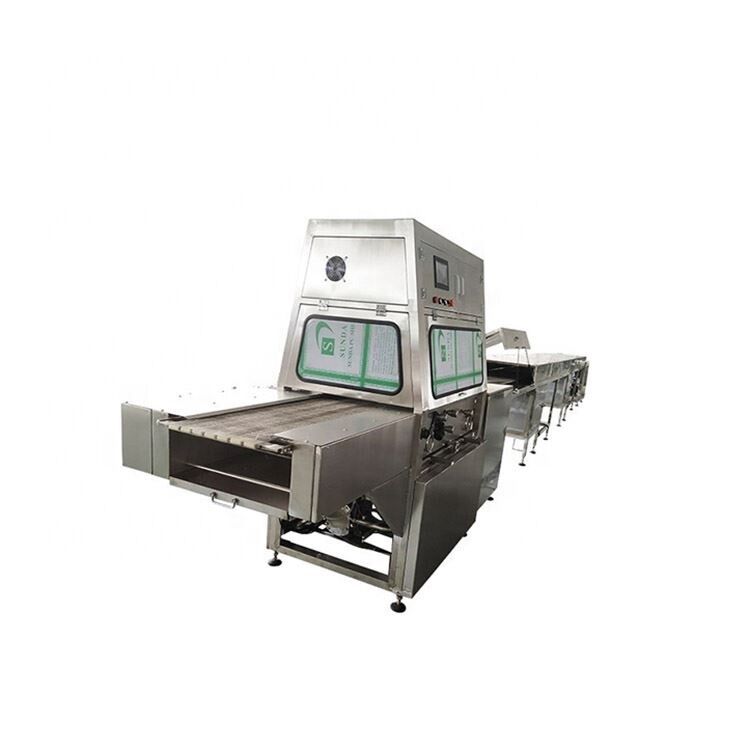

Chocolate Dipping Machine for Date Bars, Cookies & Cakes
Specially designed for coating snack products such as date bars, cookies, and cakes, this chocolate dipping machine delivers even single or double-sided coverage with precision. Its modular structure allows flexible integration into various production lines, while the precision scraper and flow-guiding system ensure uniform chocolate adhesion—even on rough or porous surfaces—to perfectly seal in fillings and flavor.
The temperature control system is accurate and stable, with variation kept within ±1°C, making it suitable for dark chocolate, milk chocolate, and functional coating materials. The independently adjustable conveyor height and speed accommodate products of different thicknesses and hardness levels, with a maximum single-line output of up to 2 tons per day.
Constructed entirely from food-grade stainless steel with easy-to-disassemble components, the machine complies with HACCP standards. Optional pre-cooling modules and automatic topping systems are available, providing a complete solution for value-added snack processing—breathing refined new texture into traditional treats.
Chocolate enrober with cooling tunnel different model specifications.
| Model | 400 | 600 | 900 | 1200 |
|---|---|---|---|---|
| Belt width | 400mm | 600mm | 900mm | 1200mm |
| Belt speed | 1-10meter/min | 1-10meter/min | 1-10meter/min | 1-10meter/min |
| Cooling tunnel length | 10meter | 14meter | 20meter | 24meter |
| Refrigerator unit | 2 | 3 | 4 | 5 |
| Refrigerator | DANFOSS | DANFOSS | DANFOSS | DANFOSS |
| PLC/Touch screen |
Hpmont |
Hpmont | Hpmont | Hpmont |
| Voltage | 380V, Three phase | 380V, Three phase | 380V, Three phase | 380V, Three phase |
| Power | 12.1kw | 20.8kw | 23.8kw | 27.8kw |
| Dimension | 14200x950x1800mm | 18200x1150x1800 | 24200x1450x1800 | 28250x1750x1800 |
| Weight | 2000KG | 2450KG | 3400KG | 4100KG |
![]()
![]()
Applications:
This machine is widely used in the production of chocolate bars, chocolate beans, chocolate balls, chocolate nuts, chocolate donuts, chocolate dates, chocolate biscuit, chocolate candy, chocolate strawberry, chocolate banana, chocolate-filled products, and more, suitable for small to medium-sized chocolate factories, bakeries, and food processing enterprises.
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
Application working videos:
Dates with chocolate coating for SA customer
Banana chips with chocolate coating
Why Choose Our Product?
High-Quality Assurance: We use premium materials and advanced technology to ensure durability and stable performance.
Customized Services: Provide tailored solutions based on customer needs to meet various production requirements.
Professional After-Sales Support: We offer comprehensive after-sales services, including installation, operation training, and regular maintenance.
Customer Testimonial:
"Since introducing this 400mm chocolate enrober machine and 10m cooling tunnel, our production efficiency has increased by 30%, and the quality of our chocolates has significantly improved." – Production Manager of a renowned chocolate brand.
Contact Us:
If you are interested in our product or have any questions, please feel free to contact our sales team. We will provide detailed product information and professional consultation services.
